Secure Smartphone-Controlled Garage Access System: Proposed Solution

Proposed Solution

The proposed solution is a secure, smartphone-controlled garage access system
Key features of the system:
- Multi-user access
- Bluetooth and Wi-Fi connectivity
- Rapid on/off signal on button press
- Magnetic reed switch to detect garage door state (open/closed)
- Power via USB-C
- 3D printed enclosure mountable to garage unit
- Compatible with most existing garage door openers (retrofittable)
- Allows authorized tenants to open/close the garage via Bluetooth or Wi-Fi
Addition of a carbon monixide detector and temperature sensor for safety

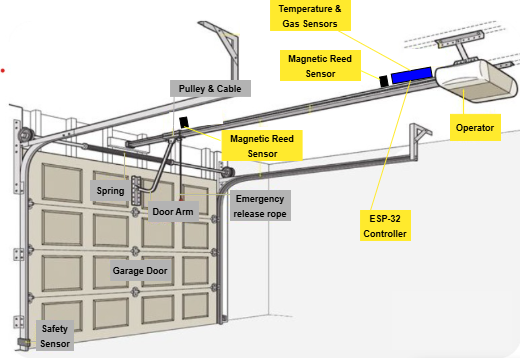

Diagram of Proposed Solution

Garage door diagram with the attached garage controller.

Testable Hypothesis

Prototype will work on garage doors
Signal transmission occurs within 2 seconds
Door state detection accuracy: 100%
Wi-Fi connection enables remote control from anywhere
CO and temperature detection via sensors; data viewable on phone
Phone notifications for high CO levels and high temperatures

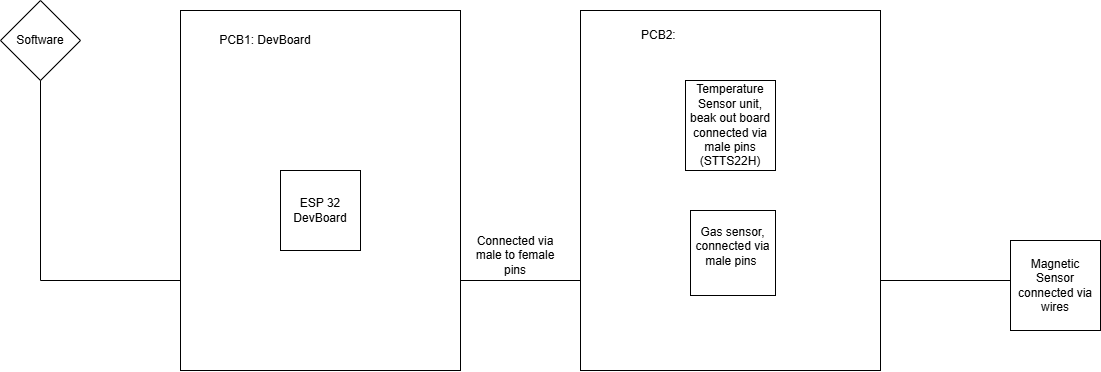

PCB block diagram

Block diagram of our hardware.

Our PCB

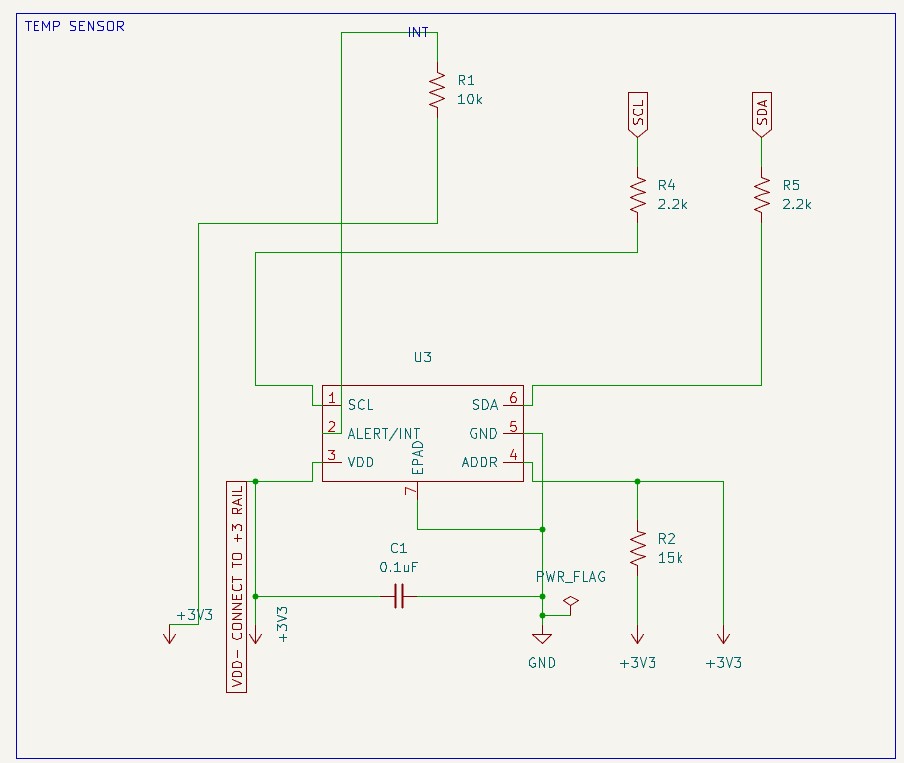

Temperature Sensor Schematic

Temperature sensor schematic

Gas Sensor Schematic

Gas sensor schematic

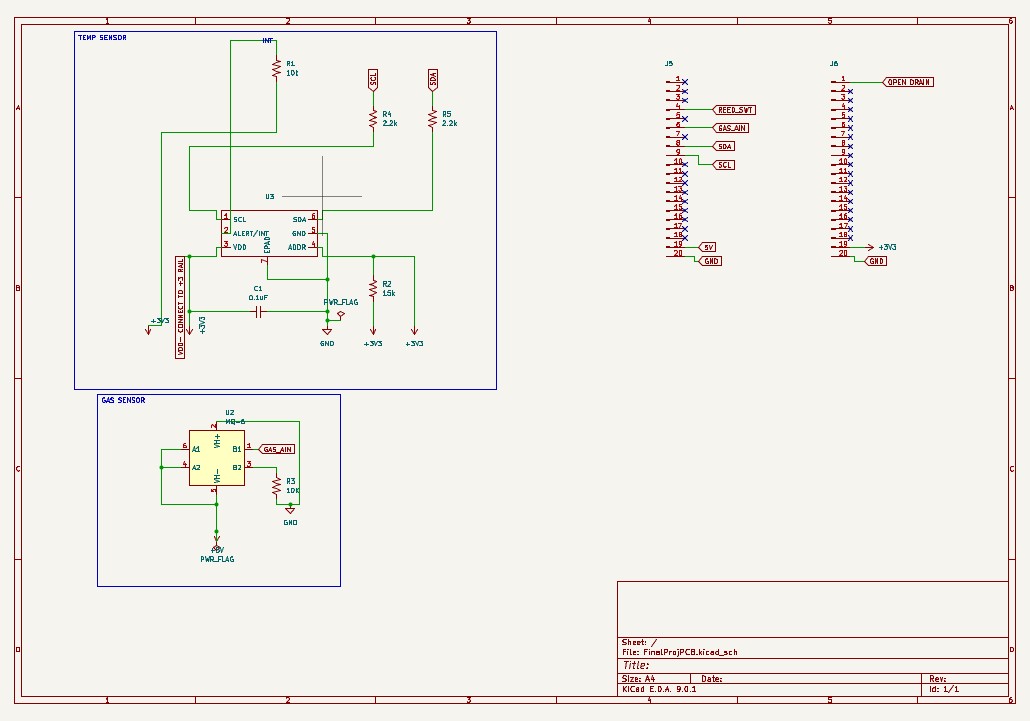

Final PCB Schematic

Complete schematic with pins

PCB 3D Image

3D PCB Design

Block Diagram of Technology

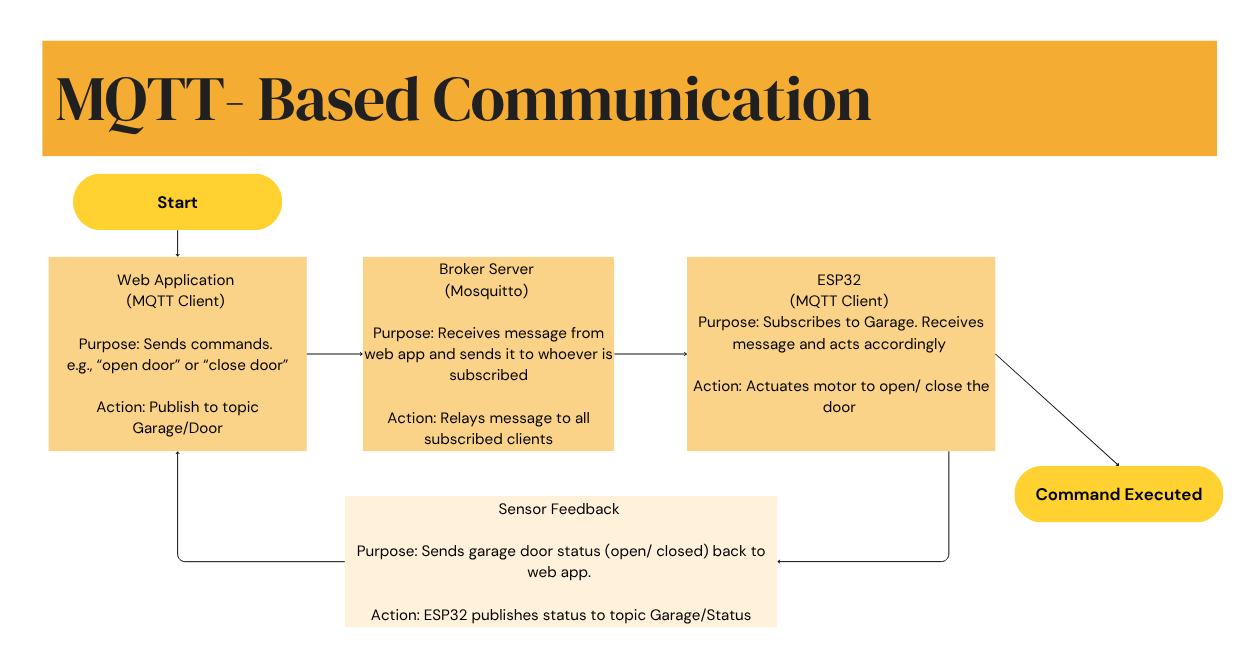

MQTT diagram

Block diagram of the technology used in our project.

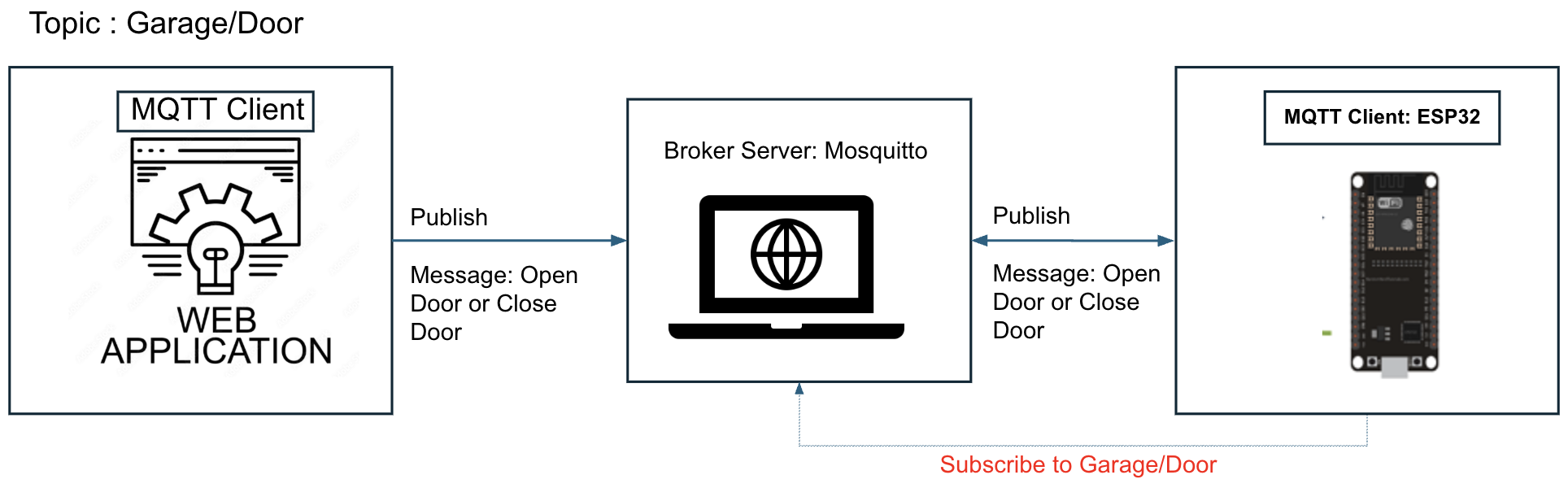

Client server diagram

Client server diagram of our project.

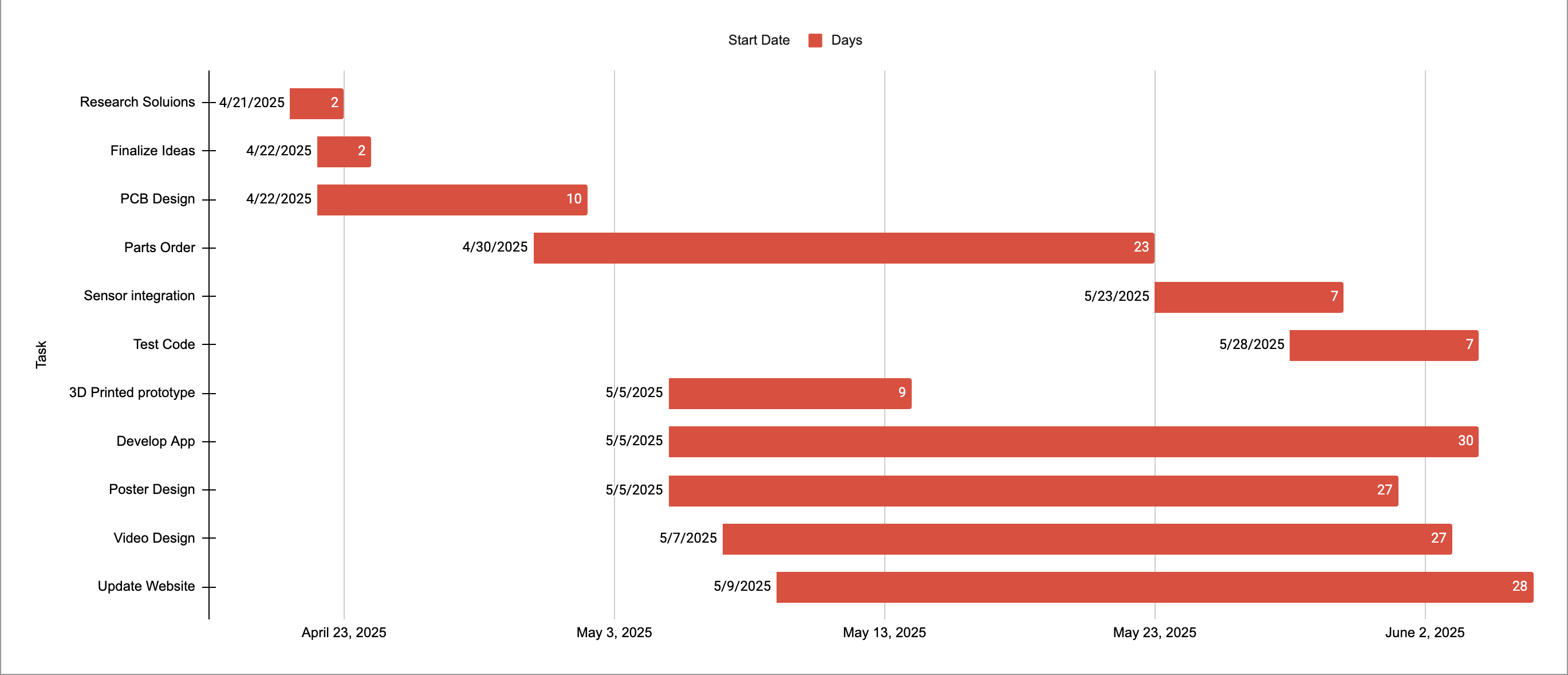

Visualization of Due Dates

Timeline of due dates

Timeline of due dates for the project.

View our Milestones!
